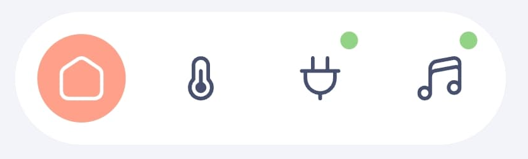

Navigation bar Card
This is a navigation bar for the bottom of your dashboard. You can add a entity to a button so it shows a green dot if something is active.
Usage
This card is fairly simple. The most important part is that you change the background color on each view to the desired color, in this case var(--primary-color). So, if you go to your second page, you remove the variable background_color_1 and add the background_color_2.
View code
- type: custom:button-card
template: hc_navigationbar_card
variables:
icon_color_1: white
background_color_1: var(--primary-color)
navigation_path_1: home
icon_1: fapro:house
navigation_path_2: climate
icon_2: fapro:thermometer
navigation_path_3: devices
icon_3: fapro:plug
entity_3: switch.all_switches
navigation_path_4: media
icon_4: fapro:music
entity_4: 'media_player.all_media'
Variables
| Variable | Default | Required | Description |
|---|---|---|---|
| icon_color_1 | var(–color-dark-gray) | No | Color of the first icon |
| background_color_1 | var(–color-light-gray-nav) | No | Background color of the first button |
| navigation_path_1 | ’’ | yes | Navigation path for the first button |
| icon_1 | No | Icon for the first button | |
| entity_1 | No | Entity for the first button | |
| active_state_1 | ‘on’ | No | Active state for the first button |
| icon_color_2 | var(–color-dark-gray) | No | Color of the second icon |
| background_color_2 | var(–color-light-gray-nav) | No | Background color of the second button |
| navigation_path_2 | ’’ | No | Navigation path for the second button |
| icon_2 | No | Icon for the second button | |
| entity_2 | No | Entity for the second button | |
| active_state_2 | ‘on’ | No | Active state for the second button |
| icon_color_3 | var(–color-dark-gray) | No | Color of the third icon |
| background_color_3 | var(–color-light-gray-nav) | No | Background color of the third button |
| navigation_path_3 | ’’ | No | Navigation path for the third button |
| icon_3 | No | Icon for the third button | |
| entity_3 | No | Entity for the third button | |
| active_state_3 | ‘on’ | No | Active state for the third button |
| icon_color_4 | var(–color-dark-gray) | No | Color of the fourth icon |
| background_color_4 | var(–color-light-gray-nav) | No | Background color of the fourth button |
| navigation_path_4 | ’’ | No | Navigation path for the fourth button |
| icon_4 | No | Icon for the fourth button | |
| entity_4 | ’’ | No | Entity for the fourth button |
| active_state_4 | ‘on’ | No | Active state for the fourth button |
| icon_color_5 | var(–color-dark-gray) | No | Color of the fifth icon |
| background_color_5 | var(–color-light-gray-nav) | No | Background color of the fifth button |
| navigation_path_5 | ’’ | No | Navigation path for the fifth button |
| icon_5 | No | Icon for the fifth button | |
| entity_5 | No | Entity for the fifth button | |
| active_state_5 | ‘on’ | No | Active state for the fifth button |
| icon_color_6 | var(–color-dark-gray) | No | Color of the sixth icon |
| background_color_6 | var(–color-light-gray-nav) | No | Background color of the sixth button |
| navigation_path_6 | ’’ | No | Navigation path for the sixth button |
| icon_6 | No | Icon for the sixth button | |
| entity_6 | No | Entity for the sixth button | |
| active_state_6 | ‘on’ | No | Active state for the sixth button |
